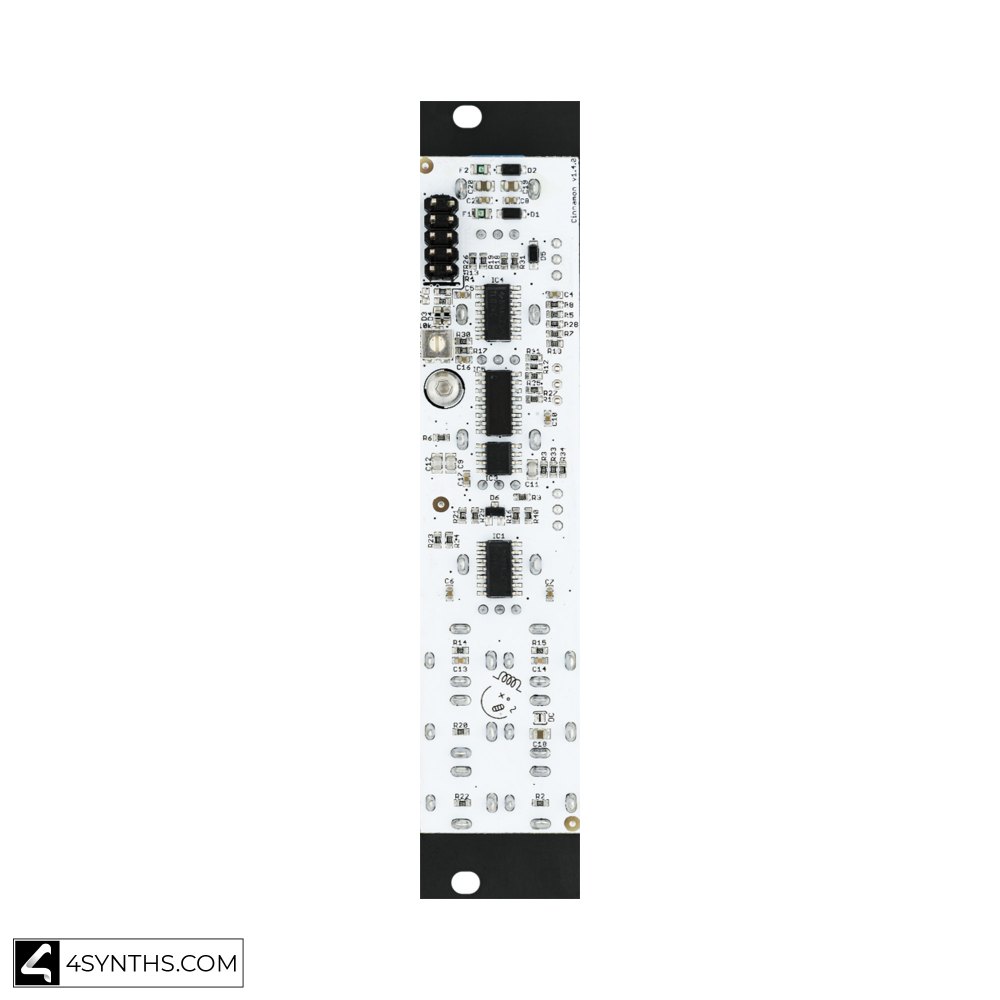

Bastl Instruments Cinnamon

FEATURES

• voltage controlled cutoff frequency
• CV input with attenuator
• volt per octave CV input
• audio input with gain control
• drive switch to overdrive the input of the filter
• low pass output (12db/oct – 2-pole)
• band pass output (6db/oct – 1-pole)
• high pass output (12db/oct – 2-pole)
• resonance control
• character switches to change the resonance response (character switches might break V/Oct tracking)
• with maxed resonance works as an oscillator (0°,90° and 180° phased sinewave at LP,BP and HP outputs)
• character switches change the waveform when self-oscillating and might also break the V/Oct tracking

TECHNICAL DETAILS

• 5HP width
• PTC fuse and diode protected 16pin power connector
• 35mm deep
• current consumption: +12V: <30mA, -12V: <30 mA
