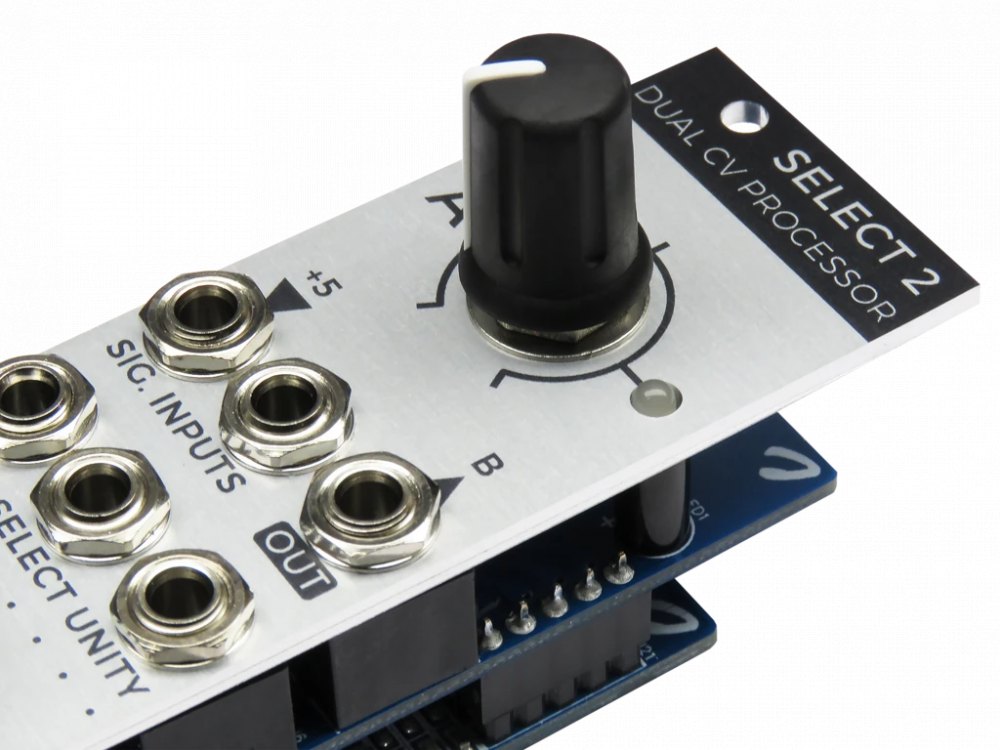

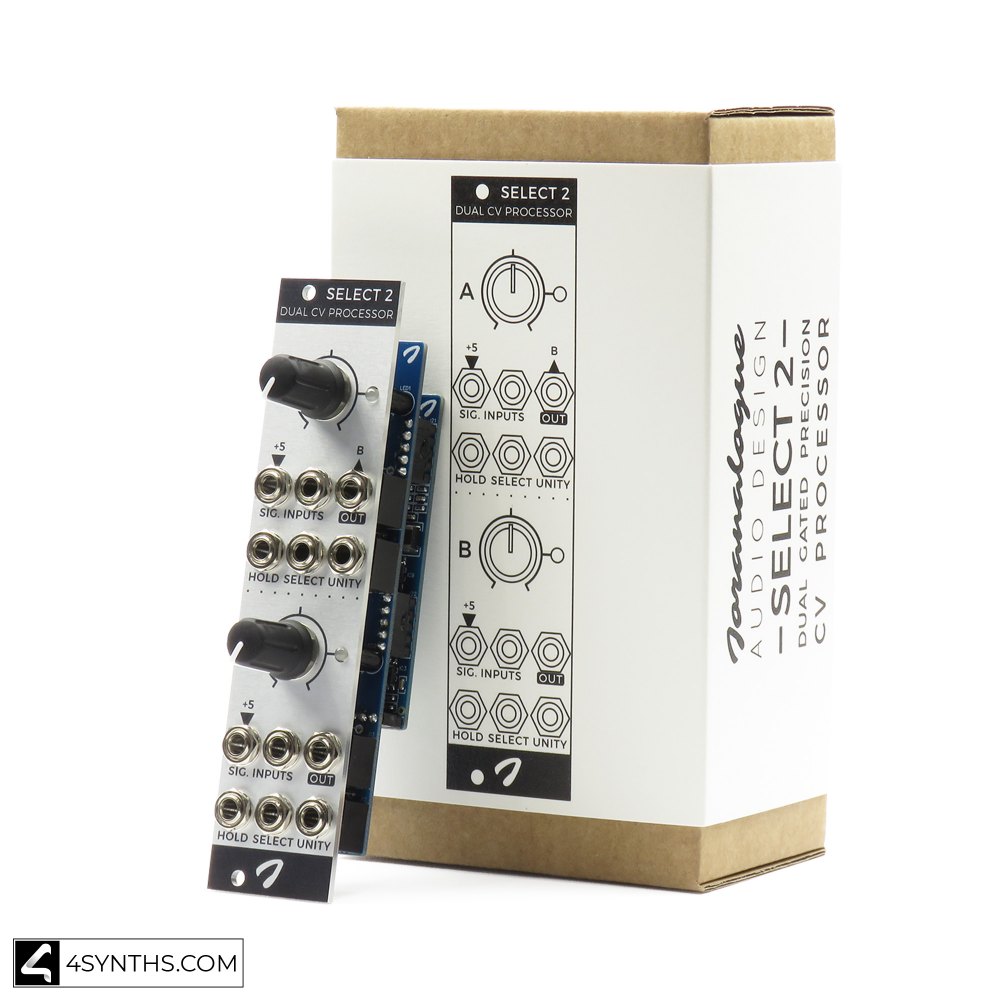

Joranalogue Select 2

€ 185,00
DUAL GATED PRECISION CONTROL VOLTAGE PROCESSOR
6 HP | +12: 25 mA, −12: 25 mA

A 'Swiss Army knife' for your modular system, Select 2 provides two highly accurate gate-controlled voltage processors in 6 HP. These allow you to create, switch, mute, hold, invert, attenuate, offset, add/mix and subtract voltages, from slow control voltages (CV) up to audio frequencies.

Each processor features two signal inputs, with the left input used by default. A gate on the 'select' input switches to the right signal input instead. The signal inputs are normalised to the precision +5 V reference (left) and 0 V (right).

Following the input section is a hold circuit. A rising edge on the 'hold' input freezes the input voltage at that moment, until the gate input goes low again. While most sample/track-and-hold modules only manage a few seconds, Select 2’s 'low droop' design enables it to store a held voltage accurately for several minutes.

The end of the signal path consists of a gated polariser/attenuverter. Using the knob, the voltage at the output can attenuated and/or inverted: the gain is −1 (inverted) at the minimum setting, 0 at the centre and +1 (unity gain) at the maximum. The polariser can be disabled using the 'unity' gate input. This unique ability enables a variety of interesting gate-controlled signal modulations. Dual-colour LEDs show the output voltage of each processor.
Finally, if the A output socket is left unused, the signal is mixed together with the B output. This enables signal offsetting, CV mixing, pitch transposing etc.



  • Two precision analogue CV processors with input selection, voltage hold and gated polariser functionalities.
  • Left signal inputs are normalised to the precision +5 V reference, right inputs to 0 V. Switched using 'select' gate input.
  • High-performance 'low droop' hold circuitry: stays pitch-accurate for several minutes.
  • Unique gated polarisers, which can be switched off (unity gain) via gate inputs.
  • Normalised mixing: leave the A output unused to mix it with the B output signal.
  • Dual-colour red/blue LEDs for output voltage indication.
  • Precision-milled 2 mm anodised aluminium front panel with high-resolution, non-erasable graphics.
  • Bullet-proof design: polarised power header and MOSFET protection circuit.
  • Includes 16-to-10-pin Eurorack power ribbon cable.
  • Premium mounting hardware: black screws, black nylon washers and matching hex key.
  • High-quality components and assembly; designed and made in Belgium.

Browse all products by Joranalogue Audio Design
In stock
Ships in 1–2 days
  • Fast & affordable worldwide shipping
  • Quick delivery and turnaround
  • Manufacturer's Warranty
Brand Joranalogue Audio Design
Eurorack Size 3U, 6HP
